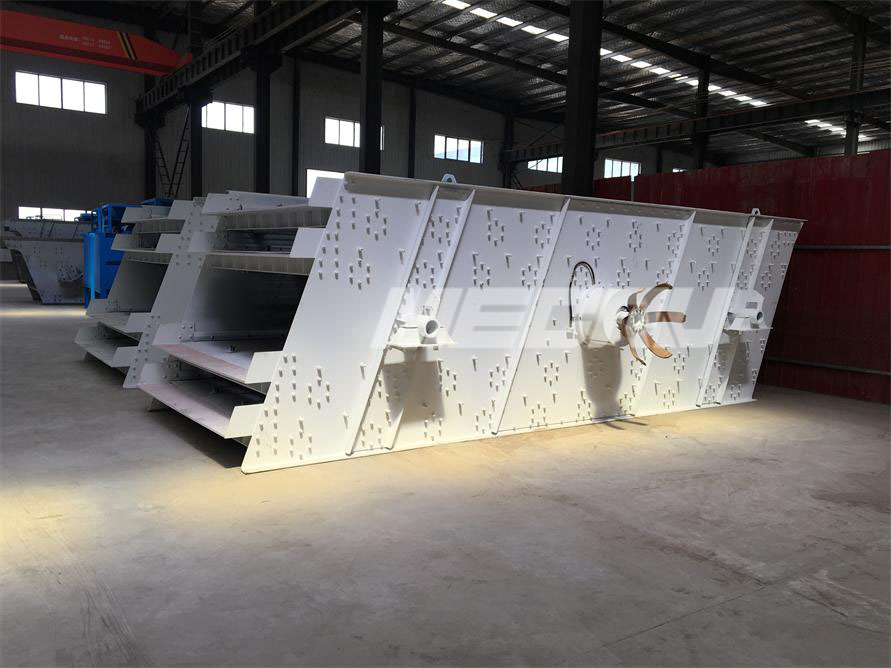

Circular Vibrating Screen

  • Capacity 35-1000t/h
  • Feeding size ≤200mm

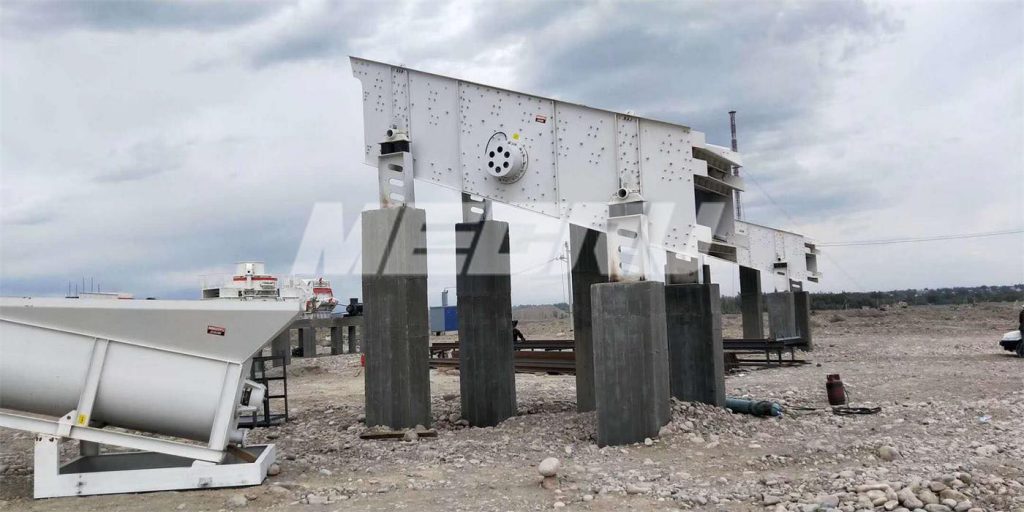

Application areas: suitable for quarry screening sand and stone materials, but also for construction waste recycling, coal preparation, mining, mineral processing, building materials, electric power and chemical industry and other screening applications

Applicable materials: quartzite, iron ore, granite, basalt, diabase, shale, pebbles, limestone, etc

get a quote Online chat

Product Introduction

The vibrator of the circular vibrating screen only has a separate shaft, so it is also known as the single axis vibrating screen, because the motion trajectory of the screen box is round or oval, he named the circular vibrating screen. It is also widely used in dry and wet classification of granular and small loose solid materials.

Advantages

  1. The vibration of the screen box is more intense than the same type of products, the phenomenon of screen blockage is less, higher screening efficiency and production efficiency.
  2. The structure of the machine is relatively simple, screen surface can be directly disassembled and replaced, the use and maintenance are convenient and time-saving .
  3.  External block eccentric vibrator, strong excitation force, adjust amplitude easily.
  4. The side plate adopts the whole bending, high strength, the screen frame connection adopts the ring groove rivet, the whole force is uniform, greatly improves the quality of the equipment.
  5. The service life of the vibrating screen is long, the noise is small in production, and the rubber vibration isolation spring is used, so that the resonance area is stable.

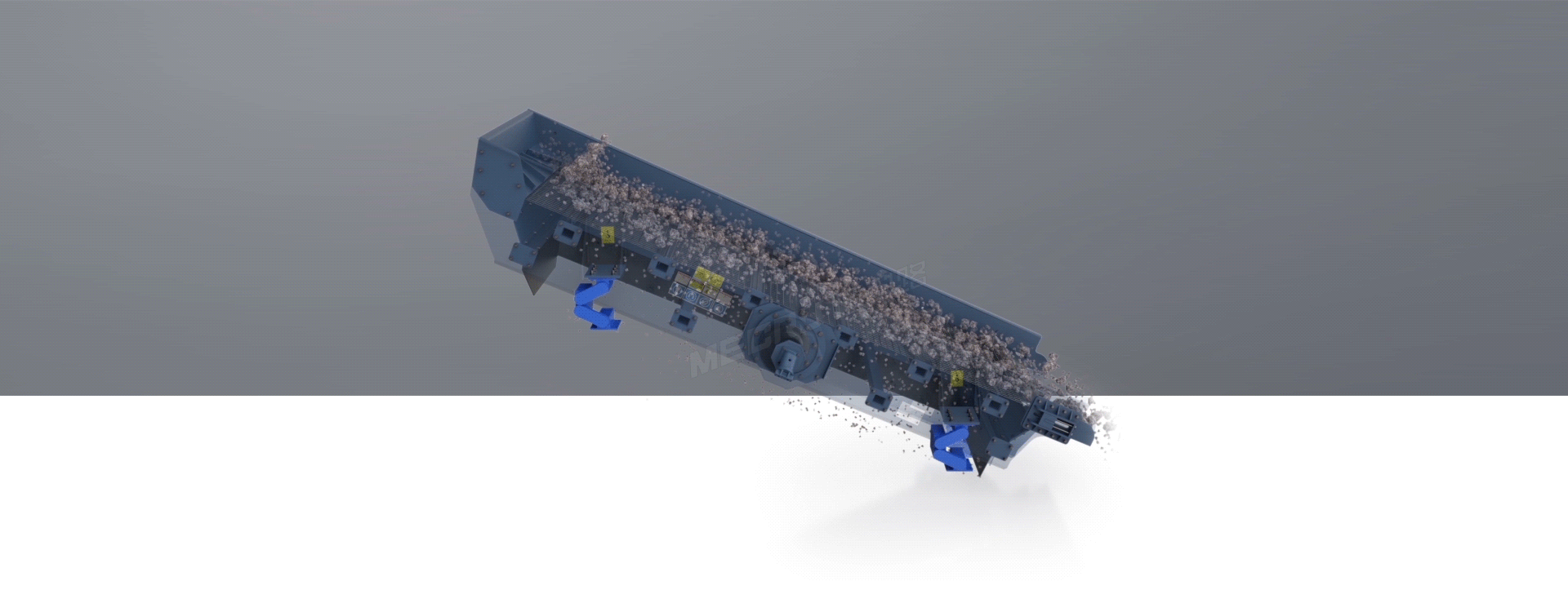

Working principle

Circular vibrating screen is mainly composed of screen box, vibrator, suspension (or support) device and motor. The motor through the triangle belt, driving the shaker spindle rotation, due to the centrifugal force of the unbalanced weight on the shaker so that the screen box vibration. Different amplitudes can be obtained by changing the eccentric shaft of shaker.

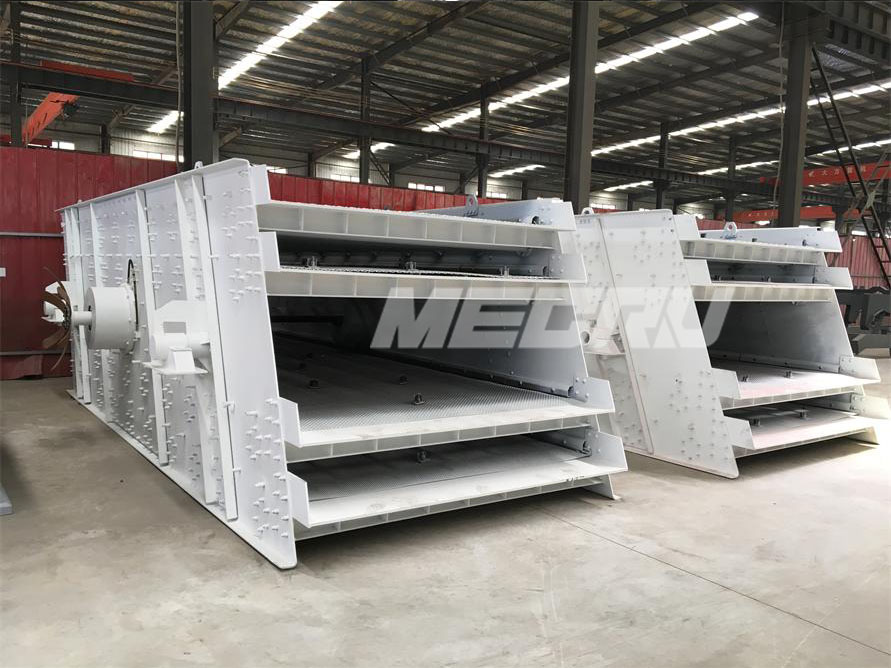

Circular Vibrating Screen

Parameters

Model Screen Feeding Size Capacity power
Deck Mesh area(m^2) （mm） (t/h) （kw）
2YK1236 2 4.3 ≤200 35-150 11
2YK1548 2 7.2 ≤200 50-300 15
3YK1548 3 15
2YK1860 2 10.8 ≤200 80-500 22
3YK1860 3 22
4YK1860 4 30
2YK2160 2 12.6 ≤200 100-580 30
3YK2160 3 30
4YK2160 4 37
2YK2460 2 14.4 ≤200 150-650 30
3YK2460 3 37
4YK2460 4 45
2YK2675 2 19.5 ≤200 160-850 45
3YK2675 3 55
2YK3075 2 22.5 ≤200 500-1000 37×2
3YK3075 3 45×2
