Shaking table

  • Capacity 15-108 t/d
  • Feeding size <3mm

Application areas: Gravity concentration in mineral processing plant.

Applicable materials: tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, titanium and coal, etc.

get a quote Online chat

Product Introduction

The shaking table is a gravity concentrator used to separate fine-grained materials. It is widely used to separate tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, ferro-titanium, coal, etc. Our factory has a long history of producing vibrating screens, and we continue to develop and innovate to make it have the characteristics of large processing capacity, high recovery rate and high enrichment rate.

Advantages

  1. The structure is simple, the use cost is low, and the investment is reduced.
  2. Large processing capacity, high recovery rate and high enrichment rate.
  3. The effect of the finished product is good, and the final concentrate and the final tailings can be obtained at one time
  4. Compared with the traditional process, it has the advantages of no chemicals, low energy consumption, easy management, etc.

Working principle

Shaking table is an inclined bed surface. With the combined action of symmetrical reciprocating motion of mechanical slate and thin-layer inclined surface water flow, the ore particles are loosely layered and zoned on the bed surface, so that minerals are sorted according to different densities.

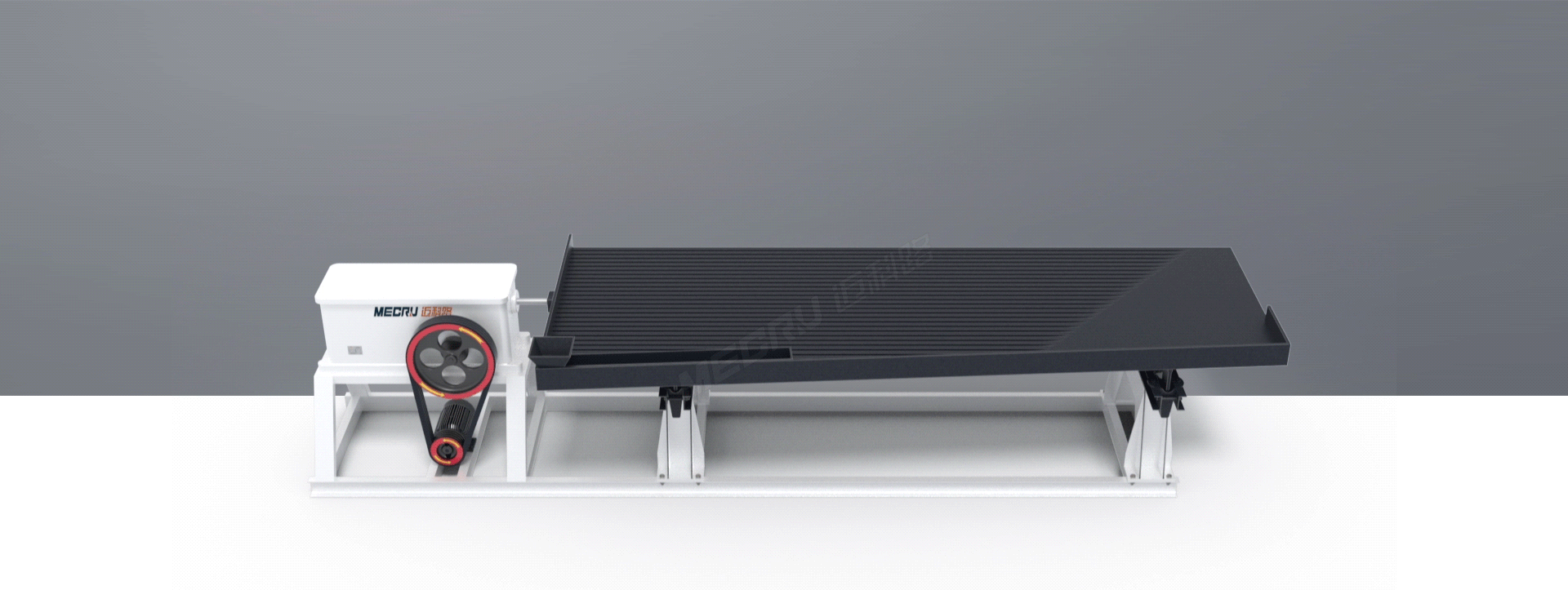

Shaking table

Parameters

Model performance LS4500 LY3000 LY2100 LY1100
Screen size(mm) 4500×1850×1560 3000×1620×1100 2100×1050×850 1100×500×430
Stroke length (mm) 10-30 6-30 12-28 9-17
Frequency(tph) 240-420 210-320 250-450 280-460
Horizontal slope 0-5 0-10 0-8 0-10
Feeding range(mm) 2-0.037 2-0.037 2-0.037 2-0.037
Feeding density 10-30 10-30 10-30 10-30
Capacity 0.3-2.5 0.2-1.5 0.1-0.8 0.03-0.2
Water Consumption 0.4-0.7 0.3-1.5 0.2-1 0.1-0.5
Motor Power kw 1.1 1.1 1.1 0.55
dimension(mm) l*w*h



 5600×1850×860 4075×1320×780 3040×1050×1020 1530×500×800
