Sand Washing Machine

  • Capacity 20-200T /h
  • Feeding size ≤10mm

Application areas: suitable for cleaning, grading, purify in metallurgy, building materials, hydropower and other industries, and for washing fine and coarse-grained materials

Applicable materials: suitable for metallurgy, building materials, hydropower and other industries sand aggregate washing, grading, purify, etc

Product Introduction

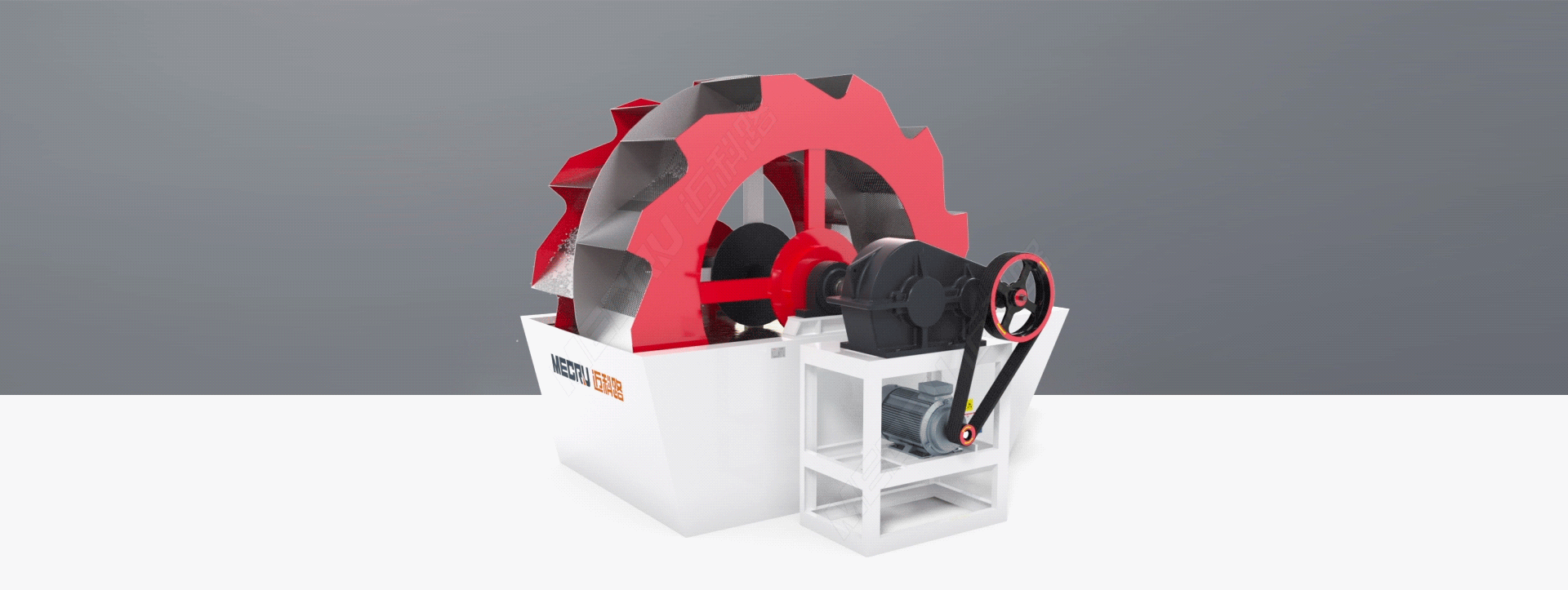

MECRU sand washing machine has large cleaning intensity, reasonable structure, large output, less sand loss in the sand washing process, especially its drive part is isolated from water and sand, so its failure rate is much lower than the current commonly used sand washing machine. Because MECRU has adopted advanced technology and combined with the development status and actual situation of the sandstone industry at home and abroad to develop, improve, upgrade products.

Advantages

  1. Simple structure, no wearing parts, easy maintenance.
  2. High cleanliness, large output, less sand loss.
  3. Work stability, less fault, production is easy.

Working principle

When working, the power device drives the impeller to rotate slowly through the triangle belt, reducer and gear reduction. The sandstone enter the washing tank from the feeding tank, roll under the drive of the impeller, and grind each other to remove the impurities covering the surface of the sandstone, and destroy the water vapor layer covering the sand, so as to facilitate dehydration; At the same time, add water to form a strong water flow, take away impurities and foreign matters with small specific gravity in time, and discharge them from the overflow outlet washing tank to complete the cleaning process.

Sand Washing Machine

Parameters

Model Wheel size (mm) Max feeding size (mm) Capacity
(t/h)
Power
(kw)
Dimension
(L*W*H)(mm)
Weight
(t)
XSD2610 2600×1000 10 20-50 5.5 3255x1982x2690 2.7
XSD2816 2800×1600 10 30-60 11 3540x3000x2880 4.2
XSD3016 3000×1600 10 50-100 15 3845x3000x3080 5.5
XSD3620 3600×2000 10 100-200 22 4500x3560x3700 9.6
