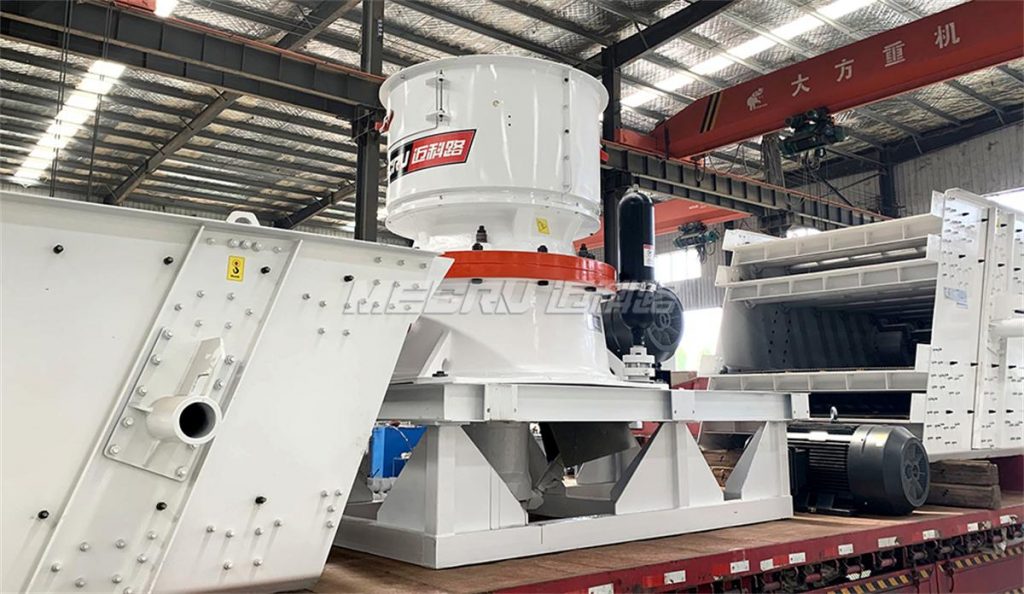

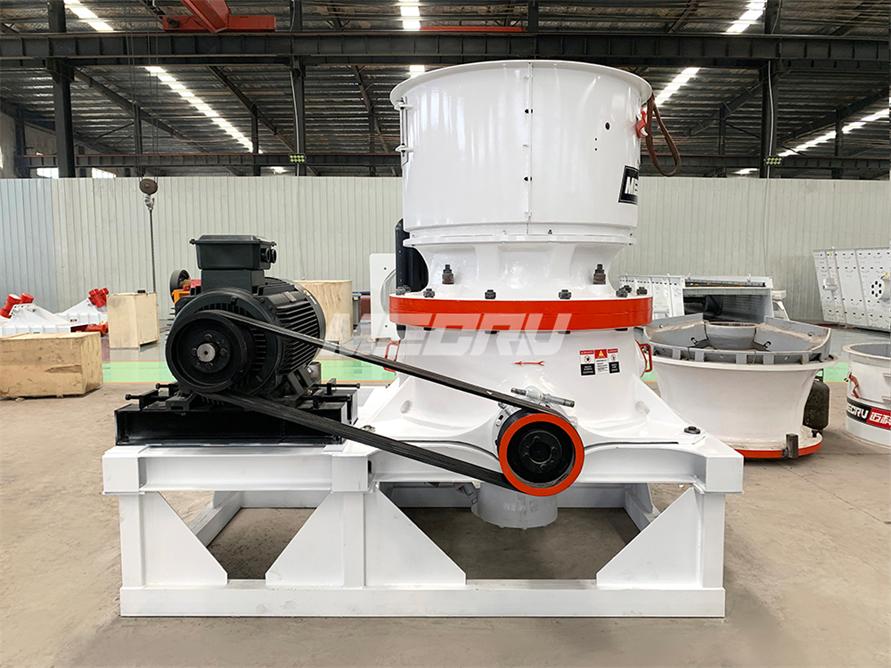

Single cylinder hydraulic cone crusher

  • Capacity 27-1600t/h
  • Feeding size ≤560mm

Application areas: suitable for crushing and screening operations of various sand and gravel aggregates, mine crushing, building stone crushing operations, etc.

Applicable materials: medium and fine crushing of hard rocks such as iron ore, gold ore, non-ferrous metal ore, granite, quartzite, basalt, etc.

get a quote Online chat

Product Introduction

Mecru HPG multi-cylinder cone crusher is mainly used in the second-stage intermediate crushing and third-stage fine crushing in metal mines and sand and gravel aggregate processing. Crusher safety, adjustment, and locking all use hydraulic devices, so it has what other crushers do not have. It is convenient to adjust the discharge port, and the overload coefficient is small when passing non-crushed objects. It is easy to take out the non-crushed objects that are blocked in the crushing cavity.

Advantages

  1. Mechanical, hydraulic and intelligent control are integrated, the operation is simple and convenient, and the discharge port is adjusted by one button.
  2. One machine can change different crushing cavity types. The machine is equipped with multiple medium crushing and fine crushing cavities. Only a few parts such as the corresponding cavity type lining board need to be replaced to convert the machine cavity type.
  3. It has a fully automatic production control system, which is convenient and quick to operate and easy for employees to operate.
  4. The finished material produced has uniform particle size, and the finished sand and gravel aggregate has excellent quality and good particle shape.
  5. The structure of the equipment is relatively simple, which is more convenient for later maintenance and inspection, and greatly reduces the maintenance time.

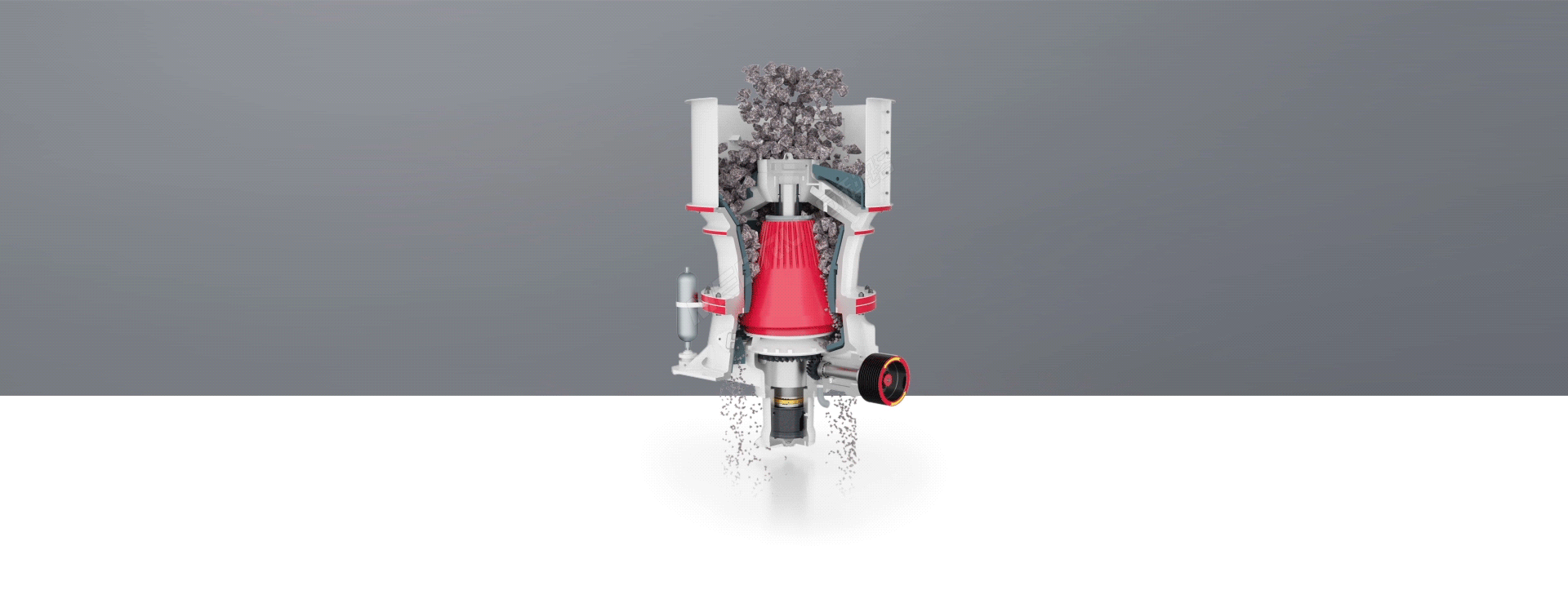

Working principle

The horizontal shaft is driven by the motor to rotate, and the horizontal shaft is driven by the gear to rotate the eccentric shaft, and then the eccentric sleeve drives the moving cone to make a circular swing, so as to realize continuous crushing and crushing of materials. By adjusting the hydraulic cylinder at the bottom of the movable cone, the movable cone can move up and down so as to conveniently adjust the size of the discharge port.

Single cylinder hydraulic cone crusher

Parameters



model



Cavity type

 （mm）Max inlet size （mm）Min outlet size （kw）Max power
CSG420 S1(extra coarse) 240 22 90
S2(medium coarse) 200 19
CHG420 H1(fine) 135 10
H2(medium fine ) 65 8
H3(extra fine) 38 4
CSG430 S1(extra coarse) 360 25 160
S2(medium coarse) 300 22
S3(coarse) 235 19
CHG430 H1(fine) 185 13
H2(medium fine ) 90 10
H3(extra fine) 50 6
CSG440 S1(extra coarse) 450 35 250
S2(medium coarse) 400 29
S3(coarse) 300 25
CHG440 H1(fine) 215 16
H2(medium fine ) 110 13
H3(extra fine) 70 8
CSG660 S1(extra coarse) 560 41 315
S2(medium coarse) 500 38
CHG660 H1(fine) 275 16
H2(medium fine ) 135 16
H3(extra fine) 65 13
CHG870 H1(fine) 300 22 520
H2(medium fine ) 155 19
H3(extra fine) 80 10
CHG890 H1(fine) 370 25 750
H2(medium fine ) 195 22
H3(extra fine) 85 10
