Hpg Multi-cylinder Hydraulic Cone Crusher

  • Capacity 45-1200t/h
  • Feeding size ≤450mm

Application areas: sand and gravel crushing, mine crushing, building stone crushing, chemical production, roadbed construction, infrastructure, energy, etc.

Applicable materials: Quartz, river pebbles, calcite, dolomite, granite, basalt, iron ore, limestone, diabase, bluestone, and other hard and medium-hard rocks.

get a quote Online chat

Product Introduction

Mecru HPG multi-cylinder cone crusher is mainly used in the second-stage intermediate crushing and third-stage fine crushing in metal mines and sand and gravel aggregate processing. Crusher safety, adjustment, and locking all use hydraulic devices, so it has what other crushers do not have. It is convenient to adjust the discharge port, and the overload coefficient is small when passing non-crushed objects. It is easy to take out the non-crushed objects that are blocked in the crushing cavity.

Advantages

  1. Hydraulic devices are used for insurance, adjustment and locking of the crusher. It is convenient to adjust the discharge port and has a small overload coefficient when passing non-crushed objects.
  2. Mecrucontinuously optimizes the equipment and cavity type, which not only improves the efficiency of lamination crushing, but also has high crushing efficiency, but also has low wear of vulnerable parts and reduces production costs.
  3. The finished product has a cubic shape and high fine-grain content, which not only improves the quality of the finished product, but also reduces the production cost of the equipment and the entire system.
  4. One machine can change different crushing cavity types. The machine is equipped with multiple medium crushing and fine crushing cavities. Only a small number of parts such as the corresponding cavity type liner can be replaced to convert the machine cavity type.

Working principle

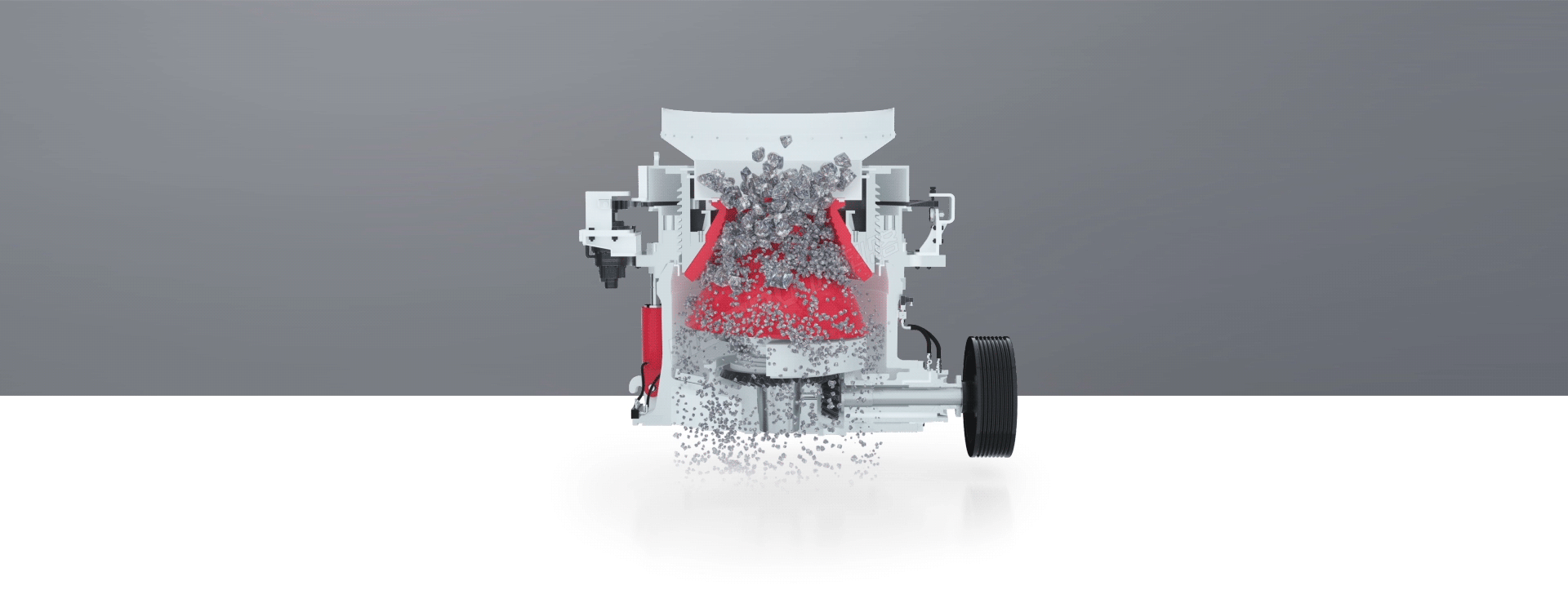

The cone breaker moves the cone under the action of the eccentric sleeve to make a swing motion, which drives the broken wall to squeeze and grind the material between the wall and the rolling mortar wall. According to the lamination theory, the material is subjected to forces in multiple directions, according to its own texture. It is crushed and polished to form stable stone particles, which fall from the swing gap of the crushing wall that meets the discharge requirements, and the rest of the materials continue to be broken until the discharge demand is reached.

Hpg Multi-cylinder Hydraulic Cone Crusher

Parameters

Model Cavity Open side feeding size
（mm）		 Closed side feeding size
（mm）		 Min outlet size
(mm)		 Capacity
(t/h)		 Power
（kw）
HPG100 C1(Extra Coarse) 175 140 19 45-100 90
C2(Coarse) 125 105 13
M(Middle) 100 70 10
F1(Fine) 71 50 9
F2(Extra Fine) 33 20 6
HPG200 C2(Coarse) 235 190 19 65-250 160
M(Middle) 171 120 16
F1(Fine) 150 95 13
F2(Extra Fine) 116 70 8
HPG300 C1(Extra Coarse) 265 230 25 85-440 220
C2(Coarse) 240 210 20
M(Middle) 190 150 15
F1(Fine) 145 105 11
F2(Extra Fine) 120 80 8
HPG400 C1(Extra Coarse ) 360 290 30 135-625 315
C2(Coarse) 310 250 25
M(Middle) 260 196 20
F1(Fine) 182 110 13
F2(Extra Fine) 135 90 10
HPG500 C1(Extra Coarse) 370 330 38 200-790 400
C2(Coarse) 320 290 28
M(Middle) 245 210 22
F1(Fine) 180 130 13
F2(Extra Fine) 150 95 10
HPG800 C1(Extra Coarse) 450 352 38 265-1200 630
C2(Coarse) 373 298 32
M(Middle) 340 275 25
F1(Fine) 280 230 16
F2(Coarse Fine) 235 150 10
