Inner Mongolia Goose Pebble Sand Production Line

Case Introduction

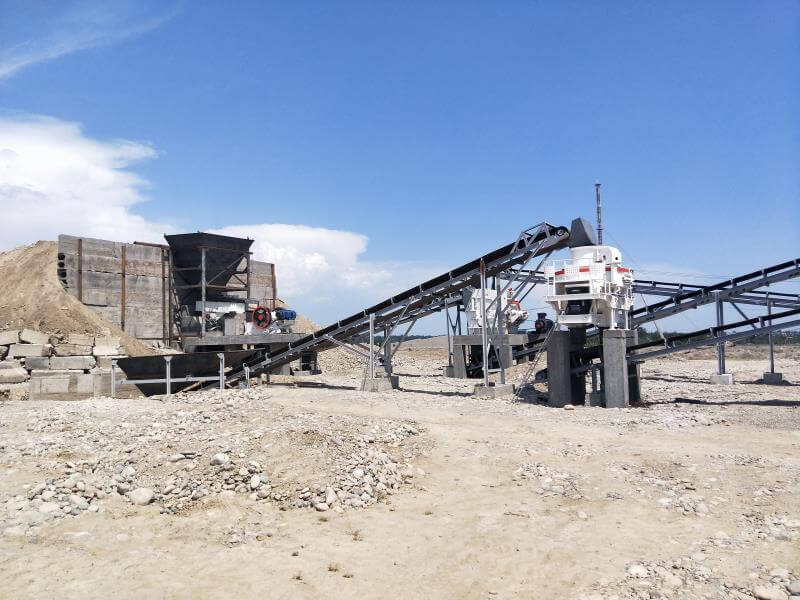

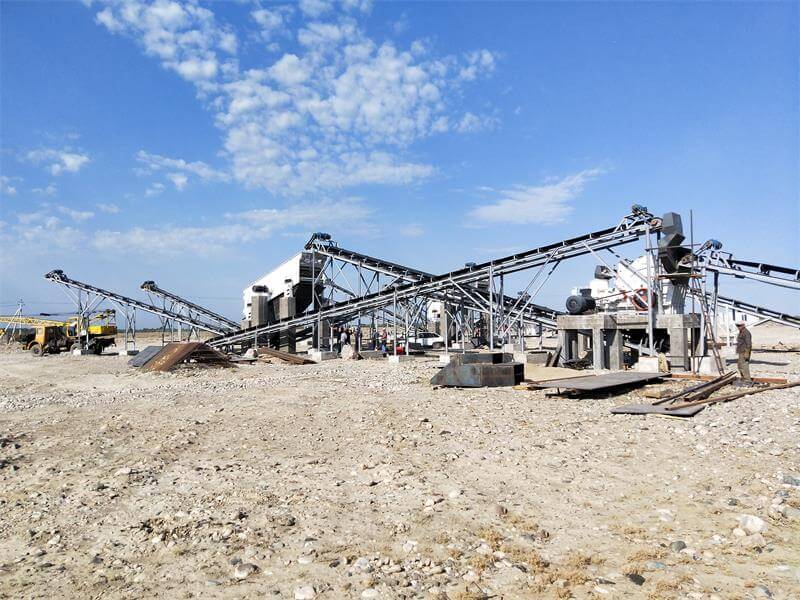

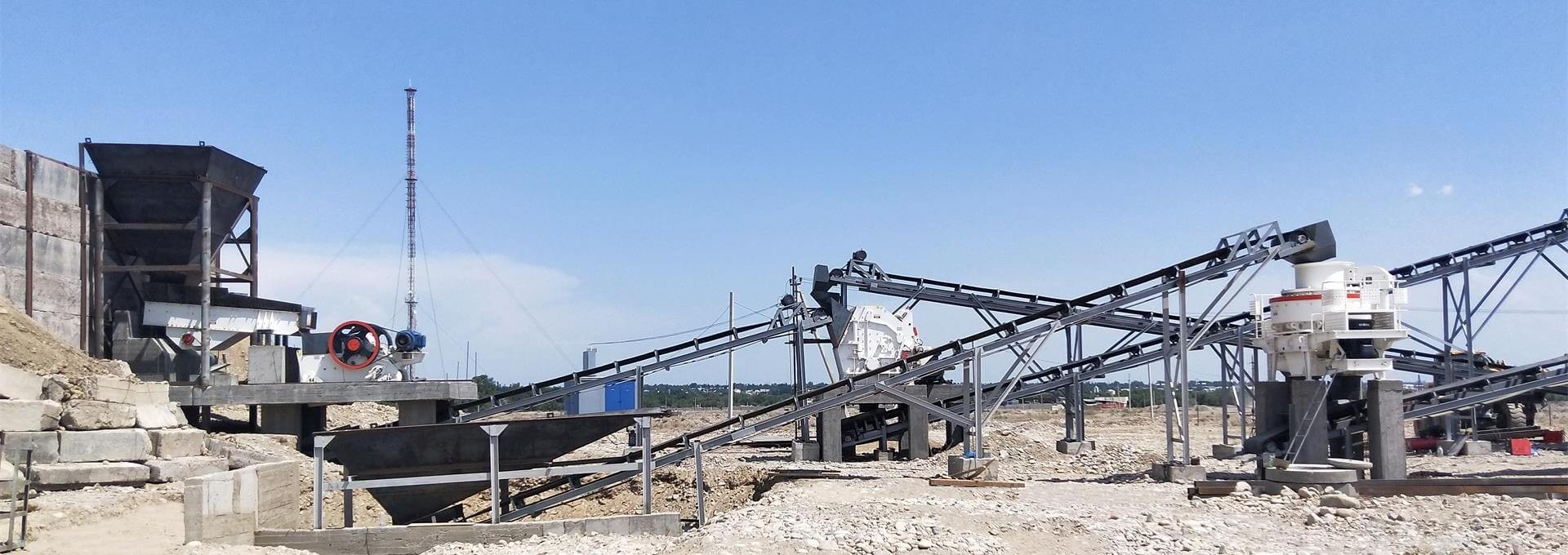

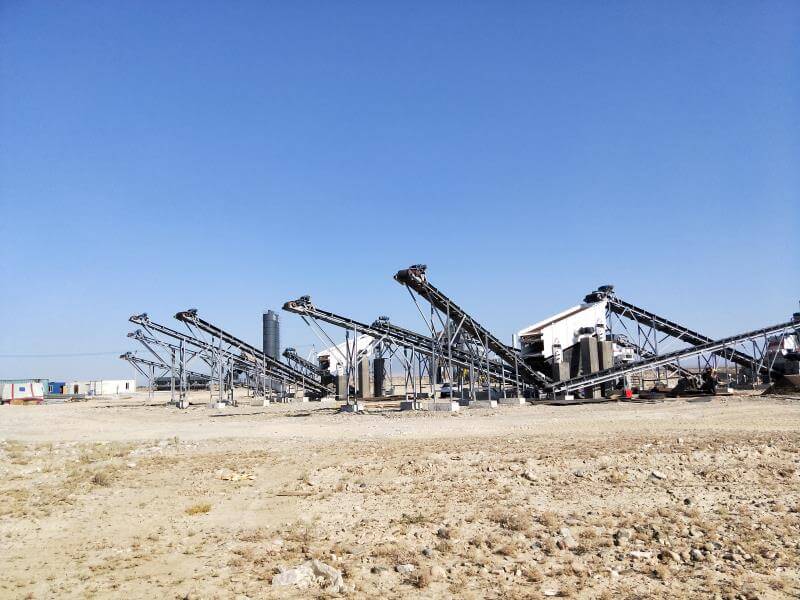

Inner Mongolia has a rich pebble resource that is not fully utilized. In construction, the lack of gap in the gravel aggregate is larger and larger, and the price is also rising rapidly. It is now an advantageous opportunity to invest in the mechanism sand production industry. After the auction bidding of the local Natural Resources Authority, the customer took into this pebble mine in Inner Mongolia. According to the customer's needs, as well as the actual situation in conjunction,finally, the cobblestone crushing production line with an hourly output of 360 tons was configured for the customer

Detailed Configuration

Coarse crushing choose the heavy Impact crusher of Mecru , the highest capacity is up to 700 t / h, which is fully compliant with the needs of the customer service. The Mecru impact sand making machine is used, and it is set to break, sand and shape, three work in one, finished mechanism grain type full, grade fitting, stable production. Finally, a sand washing machine is equipped with a cleaned finished sand without impurities.

Configuration List

feed materials	vibrating screen	1 set
Coarse crushing	CI impact crusher	1 set
Fine crushing,shaping,sand making	C high efficient impact sand making machine	1 set
screen	YK vibrating screen	2 set
Sand washing	wheel sand sand making machine	1 set

C series vertical shaft impact sand making machine

- Capacity:60-580t/h
- Feeding size:30-60mm
Applicable materials: pebble, quartz stone, limestone, cobblestone, coal gangue, basalt, granite, diabase, etc
view
C series jaw crusher
- Capacity:65-1590t
- Feeding size:120-1500mm
Applicable materials: river pebble, granite, basalt, iron ore, quartzite and other medium-hard hard rocks.
view
Vibrating Feeder
- Capacity:50-1000t/h
- Feeding size:300-900mm
Applicable materials: pebble, granite, basalt, quartzite stone, iron ore, limestone
view
Crawler jaw crusher

- Capacity:100-450t/h
- Feeding size:400-1000mm
Applicable materials: Construction waste, iron ore, ore, limestone and other materials.
view

Advantage

The selected Mecru vertical axis impact sand making machine, integrated breakage, sand and shaping, three work in one, finished product mechanism grain type full, level fitting, stable production.
The heavy counter-strike break, the break is large, the crushing efficiency is high, the maintenance is convenient, up to 700t / h.
The entire production line is reasonable, stable and efficient during production, and the failure rate is much lower than the average.
Henan Mecru Heavy Industry Technology Co.Ltd. have a perfect three-package service, as well as the perfect accessory library for accessories support.
High automation, production management, equipment management is efficient.
